Find replacement parts specifically designed for portable drafting boards, including parallel bar wires, clips, and related hardware. These parts are used to maintain, repair, or extend the life of your portable board and are not interchangeable with full drafting tables or fixed board systems. Perfect for schools, studios, and long-term board owners who need reliable replacements.
Filter By
Products List
- Product
- Qty in Cart
- Quantity
- Price
- Subtotal
-
PXB Replacement Wire Kits
Alvin / Pacific Arc$2.60 - $3.50BulletsDescriptionPXB wire kit includes: wire, spring, 2 wire crimps, wire cover plate, 2 screwsFor use with Alvin Drafting and Pacific Arc PXB Boards.Available in multiple lengthsSpecificationsAdditional InformationFeaturesDownloads -

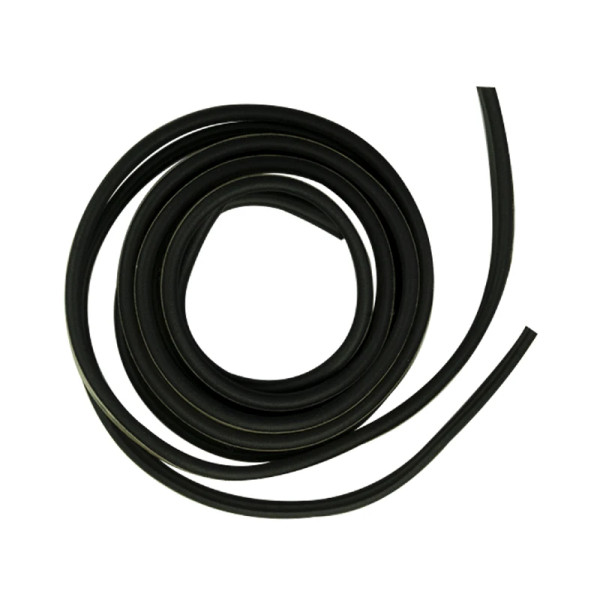

PXB Straightedge Rubber Grip Strips
Alvin / Pacific Arc$3.80PXB Straightedge Rubber Grip Strips. Set of 2 with adhesive. For use with Alvin Drafting & Pacific Arc PXB Board Straightedges.Each strip is 42"long and needs to be cut to fit your bar. -
PXB Replacement Pulley Set
Alvin / Pacific Arc$4.50PXB Replacement pulley set includes 4 pully, 8 screws.For use with Alvin Drafting & Pacific Arc PXB Boards -
500' PXB Wire/Cable
Pacific Arc$92.35500' of replacement cable/wire for Alvin or Pacific Arc PXB boards that have the wire installed on the underside of the board. -
Plastic Clamp/Pully Assembly
Martin Universal$12.95Plastic Clamp/Pully Assembly for Top-Mounted Parallel Bars (Martin Universal, Alvin, Mayline, Pacific ARC)Fits most top-mounted parallel bars (Parallel bar wire is along the top edge of the board).** DOES NOT WORK with Alvin PXB Boards or any bars with... -
Front Wire Connectors
Alvin Drafting$3.45Two front wire connectors & two screws. Fits most top-mounted parallel bars (Parallel bar wire is along the top edge of the board).** DOES NOT WORK with Alvin PXB Boards or any bars with the wire under the board ** -
PXB Replacement Straight Edge Blade
Alvin Drafting$21.45 - $29.95BulletsDescriptionThis replacement straight edge blade is compatible with the Alvin PXB Board, specifically PXB31, PXB36, and PXB42. ** Blade only. This does not include the wire or knobs. **SpecificationsAdditional InformationFeaturesDownloads -
PXB Replacement Knobs
Alvin Drafting$6.95This set includes a set of high-quality, durable knobs designed to fit the PXB Series Drawing Board. Features: Compatible with: PXB24, PXB26, PXB31, PXB36, PXB42Easy installation.Cost-effective option to restore the functionality and appearance of... -
Small Leg Kit for Portable Drafting Boards
Alvin Drafting$4.80Replacement parts for smaller portable drafting boards. 3-3/8"H Includes: 2 short legs, 2 leg attachment plates, 4 screws. -
-
PXB Side Bracket Kit
Alvin Drafting$12.30Replacement parts for PXB boards made 2014 and after. Includes a set of 2 metal side brackets and 2 of each metal side brackets, plastic end caps, wire capture knobs, and T-bolts.Works with PXB drawing boards only; where the wire for the parallel bar... -
Straightedge Rewiring Kit
DEW Exclusive$17.50 - $19.20Includes 27.5 feet of stainless steel wire, spring, and two eyelets. This wire can be used with top mounted Mayline, Alvin and Martin Universal Straightedges and Parallel Bars. -
Rubber Tractor Feet, Set of 2
Alvin Drafting$8.80Replacement parts for PXB boards made 2014 and after. Rubber grip track set of 2. -

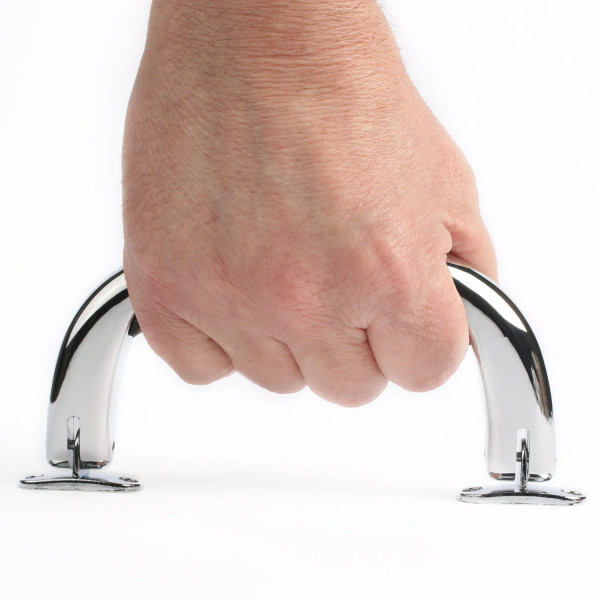

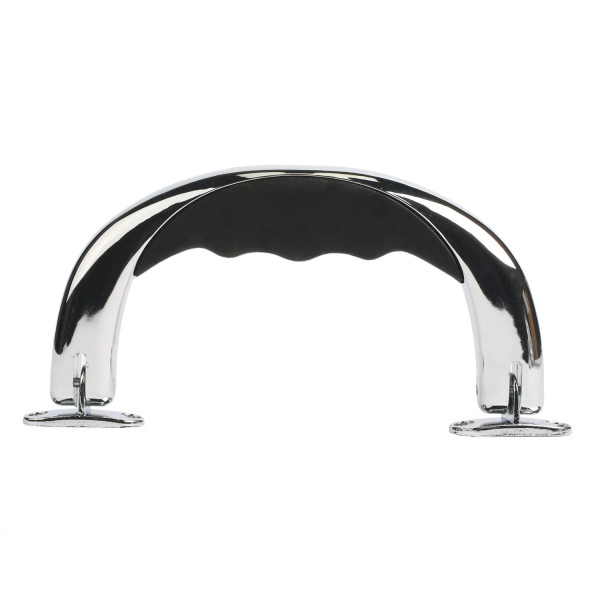

Chrome and Black Plastic Handle
Alvin Drafting$9.00Replacement handle for PXB boards made 2014 and after. Plastic carrying handle. Handle with 4 screws. -
Large Leg Kit for Portable Drafting Boards
Alvin Drafting$5.60Replacement parts for PXB boards made 2014 and after. 2 long legs 2 leg attachment plates 4 screws. 5" Length
