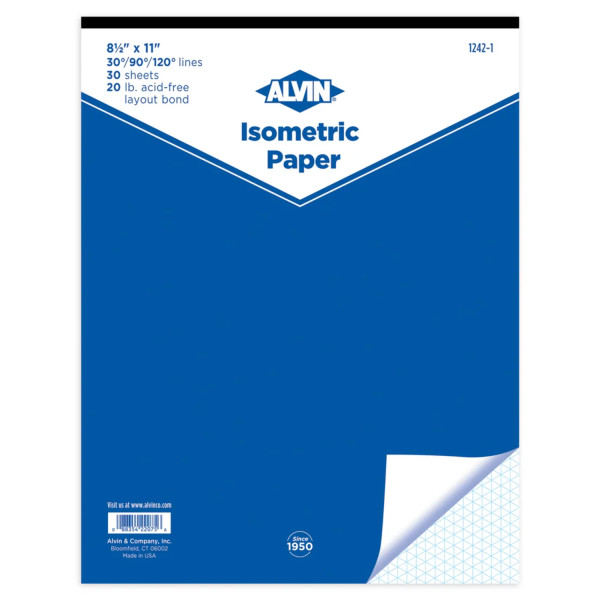

8.5" x 11" Isometric Graph Paper
Alvin Drafting$9.50 - $20.1520 lb. basis, acid-free, versatile layout bond, printed with a non-reproducible blue grid on one side. Ideal for mechanical drawing or design needs, especially machine design, architecture, and...
Description

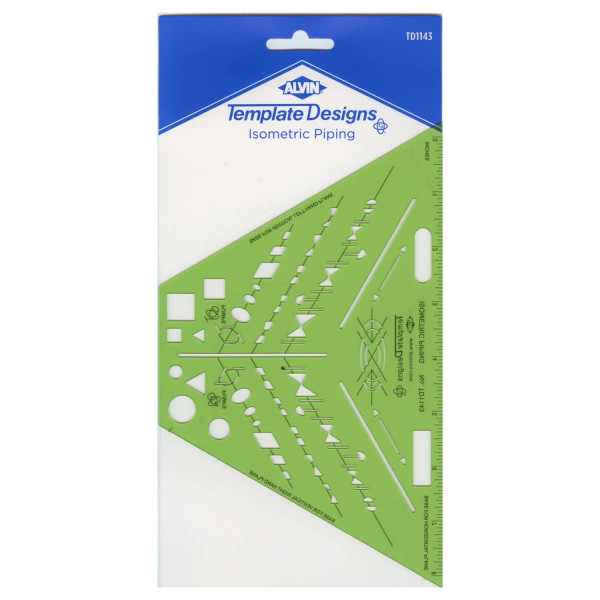

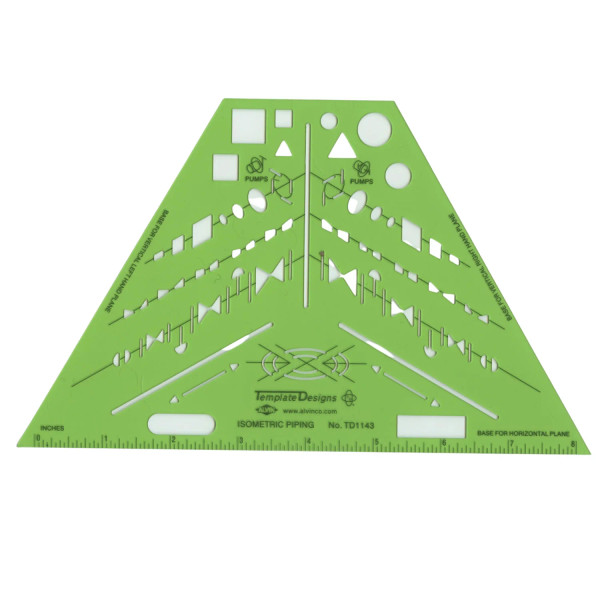

This isometric piping template contains valves, flanges, elbows, reducers, pumps, and caps.
Features:
- Over 45 symbols
- Contains values, flanges, elbows, reducers, pumps and caps
- 3-way tilt adjustment
- Includes printed centering lines
- Pencil allowance on all openings for 0.5mm pencil lead
- Non-glare, odor-free, flexible, and durable translucent plastic
