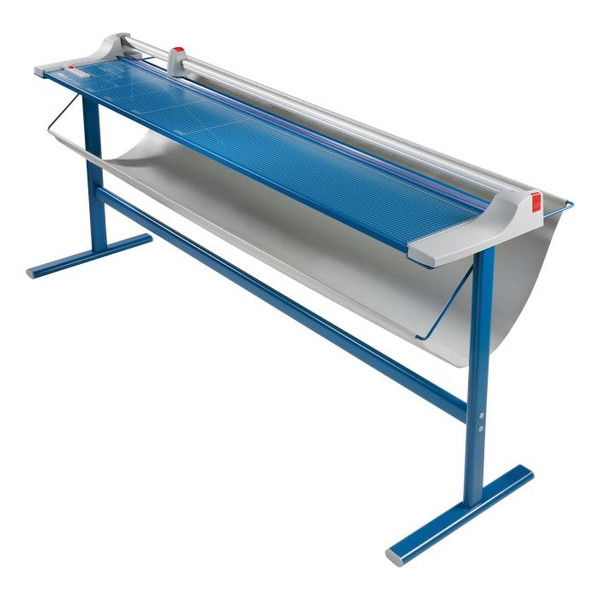

Dahle Large Format Premium Rotary Trimmers
Model Number:
D446S / D448S / D472S
Dahle's Premium Rolling Trimmers are designed for heavy duty applications where precision is essential. Whether you are cutting mat board or a single sheet of paper, you can expect to receive the same burr free cut each and every time. This cutting capacity is made possible by a thick walled square aluminum guide rod which provides maximum strength with minimal side movement of the cutting head.
Features:
- Available in three cutting sizes
- Self-sharpening blade cuts in both directions
- Dual cylinder aluminum guide bar for strength in trimming thicker material
- Automatic clamp holds work securely and prevents shifting
- German Engineered for precision and accuracy
- Includes space-saving steel stand with a paper catch for optimal cutting height
- Ground steel blade is encased in protective housing for safety
- Screened inch, metric, and angle guides for easy alignment
- Sturdy metal base provides solid a foundation
- Adjustable alignment guide for repetitive cutting
- Perfect for trimming large format paper, photographs, and cardstock
Media Types:
- Paper
- Photo Paper
- Cardstock
- Matboard (4 ply)
- Laminated Paper (1.5 mil)
- Illustration Board (14 ply)
- Canvas (8.5 - 13 oz.)
- Polyester CPF Banner (7.5 mil)
- Matte Synthetic Media (10 mil)
- PVC Banner Material (12 mil)
- Polyester w/PET Liner (2 mil)
- Polypropylene w/X-Glass 90# Liner (2 mil)
- Vinyl w/Removable Adhesive 90# (3.25 mil)
- Wall Graphics Media w/Liner (6 mil)
- Blockout Banner Material (8 mil)
- HD Binding Board (67 pt)
Product Dimensions:
- Outside Dimensions: Multiple
- Product Weight: 74 lbs.
Dahle Large Format Premium Rotary Trimmers
D446s
- Cutting Length
- 36"
- Cutting Capacity
- 22 Sheets
- Product Dimensions
- 44.125" x 15.125" x 37"
- Product Weight
- 60 lbs
- Ships Via
- Freight - LTL
D448s
- Cutting Length
- 51"
- Cutting Capacity
- 20 Sheets
- Product Dimensions
- 59" x 15.125" x 37"
- Product Weight
- 69 lbs
- Ships Via
- Freight - LTL
D472s
- Cutting Length
- 72"
- Cutting Capacity
- 12 Sheets
- Product Dimensions
- 79.5" x 15.125" x 37"
- Product Weight
- 96 lbs
- Ships Via
- Freight - LTL
Lifetime Warranty
Dahle North America, Inc. offers a lifetime warranty against defects in manufacturing, materials and assembly (excludes cutting blades and clamp). This warranty applies to the original owner only. It does not cover damage caused by abuse, misuse, or unauthorized repair. For warranty service, please call a Dahle Customer Relations Representative.
