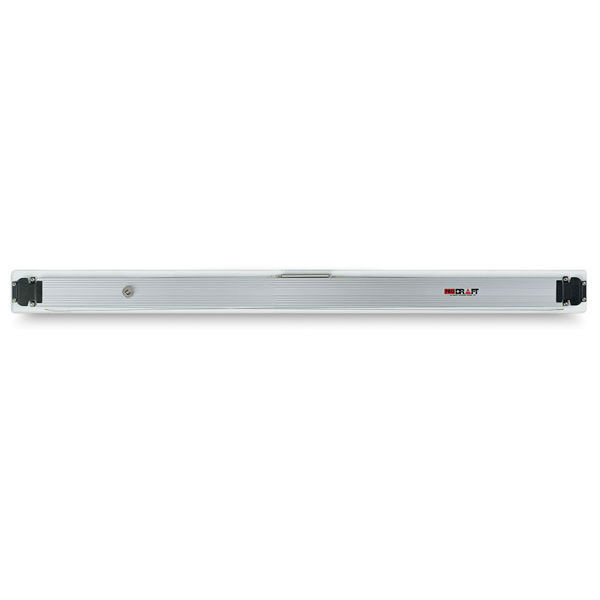

Professional Parallel Bars

Description

Reviews (3)

Description

The Pacific Arc Straightedge Parallel Bars are perfect for drafting, engineering and construction applications.

Features:

Available in 4 lengths: 30", 36", 42" or 48"
Professional quality, top-mounted bar
Rigid phenolic construction with a black satin finish

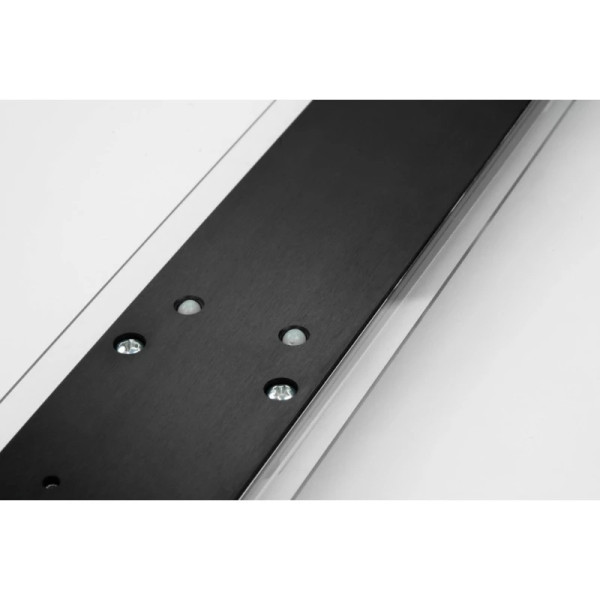

Mobile straightedge affords frictionless operation through the floating action of the nylon rollers mounted on the blade
The rollers retract at a touch, securing the blade for accurate drawing
Acrylic edges are elevated to prevent ink smears and steel ball-bearing pulleys provide smooth movement
Comes with all mounting hardware and installation instructions

Reviews (3)

3 reviews

Write Review

5
Just as described

RHR Designs on Jul 10th 2025

Thank you for the quality system. It was fairly easy to install and replaced my "ancient" bar perfectly.
4
Meets The Need Easily

Roy on Mar 26th 2024

The only problem I had was the fact that the screw which anchors to the knob which holds the wire in place was missing. Difficult to find a replacement. I finally did. Love the bar.
2
Just okay, not worth the cost.

Brittney on Feb 23rd 2023

I had high expectations for this parallel bar, but sadly it’s doesn’t meet them. The bar gets the job done, but I definitely have to struggle with it. My biggest issue is that when you press down on the bar to draw your line only the middle of the bar gets close enough to the paper to draw a precise line. As you move away from the center the bar remains up in the air so much that I can’t hold my triangle to the edge without it sliding down behind the bar. At the end of the day I can make it work, but I was expecting much more quality for the price.
