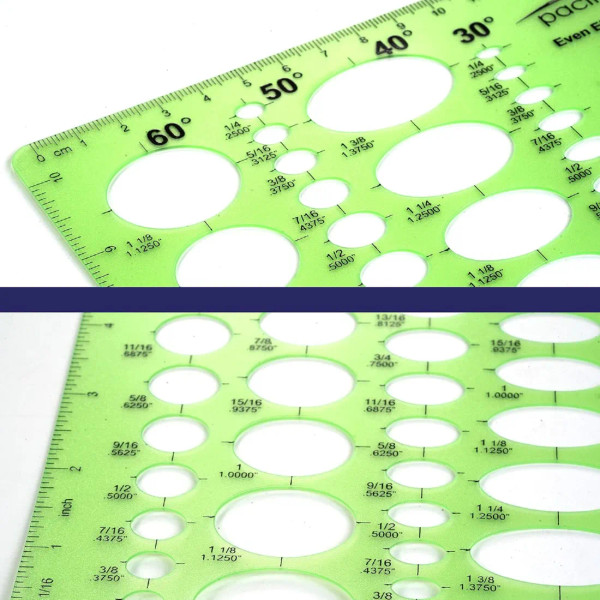

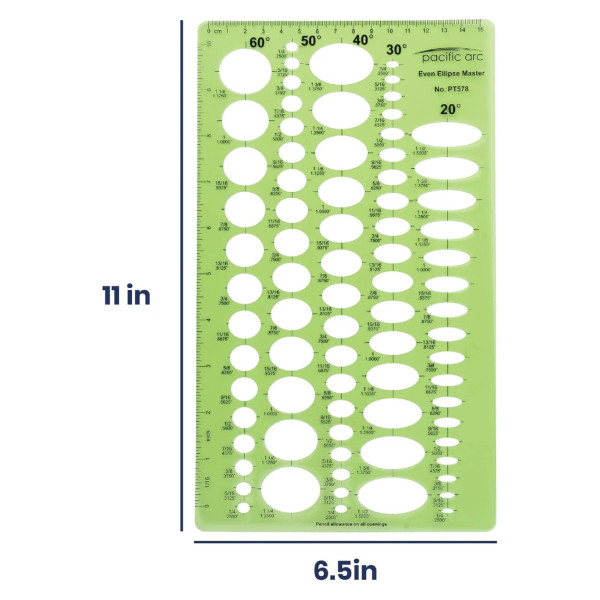

Description
This ellipse template is designed for precision and versatility, making it an essential tool for students, drafters, and architects. Featuring 79 ellipses with five-degree projections and built-in rulers, it ensures accuracy in technical drawings and designs. Its compact size makes it perfect for on-the-go use.
Features:
- 79 Ellipse Cutouts – Includes five-degree projections at 20, 30, 40, 50, and 60 degrees.
- Varied Sizes – Ellipse sizes range from 1/4" to 1-1/2".
- Integrated Rulers – Features a 10-inch ruler and a 15-centimeter ruler for precise measurements.
- Photographic Reproduction Size – Designed in correct relative size for accurate reproduction.
- High-Quality Material – Made from translucent green plastic for clear, precise drawings.
- Multi-Surface Compatibility – Works on paper, vellum, fabric, canvas, wood, and mylar.
