30/60 vs. 45-Degree Drafting Triangles: Why You Need Both

Drafting triangles may look simple, but they are some of the most useful tools on a drafting table. They help students and professionals draw straight vertical lines, accurate angles, and evenly spaced parallel lines without measuring every angle with a protractor.

The two standard types are the 30°/60° triangle and the 45° triangle, sometimes called a 45°/90° triangle. Although both include a 90-degree angle, they are not interchangeable. Each creates different angles, and using them together gives you even more options.

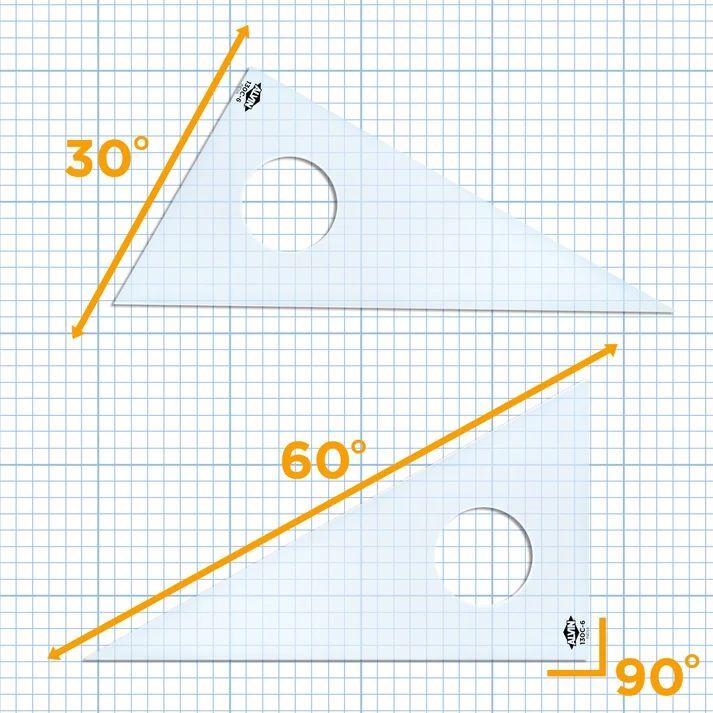

What Is a 30°/60° Drafting Triangle?

A 30°/60° triangle has three different angles:

• 30 degrees
• 60 degrees
• 90 degrees

Because the three angles are different, the triangle has one short side, one long side, and one sloped side.

The 30-degree edge creates a shallow diagonal, while the 60-degree edge creates a steeper diagonal. The 90-degree corner can be used to draw vertical lines when the triangle is positioned against a T-square or parallel bar.

Common Uses for a 30°/60° Triangle

• Drawing 30- and 60-degree lines
• Creating vertical 90-degree lines
• Isometric drawings
• Architectural and engineering drawings
• Mechanical layouts
• Repeating parallel diagonal lines
• Constructing additional angles when paired with a 45-degree triangle

The 30-degree angle is especially useful for isometric drawing, where lines are commonly drawn at 30 degrees to represent three-dimensional objects on a two-dimensional surface.

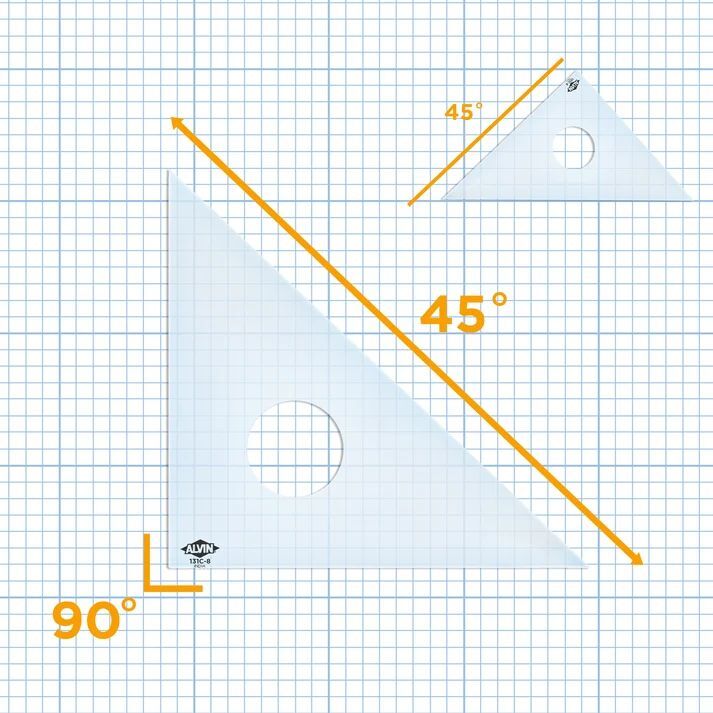

What Is a 45° Drafting Triangle?

A 45-degree drafting triangle contains:

• One 45-degree angle
• A second 45-degree angle
• One 90-degree angle

Because the two 45-degree angles are equal, the two shorter sides of the triangle are also equal.

Common Uses for a 45° Triangle

• Drawing 45-degree diagonal lines
• Creating vertical 90-degree lines
• Drawing square corners
• Creating miters
• Dividing a 90-degree angle in half
• Drawing repeated parallel lines at 45 degrees
• Constructing additional angles with a 30°/60° triangle

The symmetrical shape makes the 45-degree triangle easy to rotate and use in either direction.

Why Do Drafting Students Need Both Triangles?

A 30°/60° triangle cannot create a 45-degree line by itself, and a 45-degree triangle cannot create 30- or 60-degree lines by itself. Having both gives you the standard angles used in most beginning drafting courses.

Together, the two triangles provide quick access to:

• 15 degrees
• 30 degrees
• 45 degrees
• 60 degrees
• 75 degrees
• 90 degrees

Additional angles can be created by changing the orientation of the triangles or working from the opposite side of a horizontal or vertical reference line.

This is why drafting supply lists often include one 30°/60° triangle and one 45° triangle rather than asking students to choose between them.

How Do You Combine Drafting Triangles to Create More Angles?

The triangles can be placed against one another to add or subtract their angles.

• 45° minus 30° creates a 15° angle.
• 45° plus 30° creates a 75° angle.

These combinations allow you to construct angles in 15-degree increments without stopping to measure each one with a protractor.

A protractor is still useful when you need an angle that cannot be created with the two standard triangles. However, triangles are usually faster and more consistent for drawing common angles and repeated parallel lines.

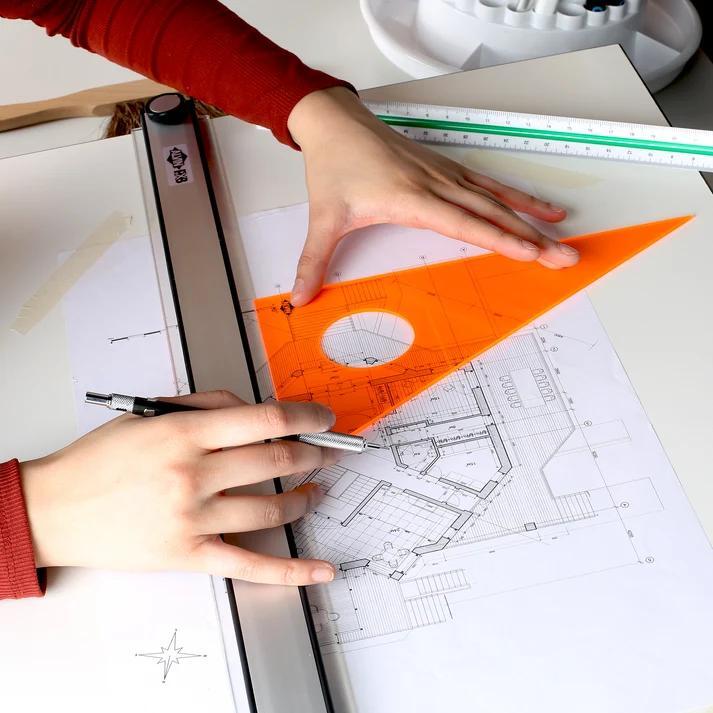

How to Use a Drafting Triangle with a T-Square or Parallel Bar

A drafting triangle needs a reliable horizontal reference edge. This is normally provided by a T-square or parallel bar.

To Draw a Vertical Line

1. Position your T-square or parallel bar horizontally.
2. Rest one straight side of the triangle firmly against it.
3. Draw along the vertical edge of the triangle.

To Draw an Angled Line

1. Keep one edge of the triangle against the T-square or parallel bar.
2. Select the 30-, 45-, or 60-degree edge.
3. Draw along that edge.
4. Slide the triangle along the horizontal guide to create additional parallel lines at the same angle.

Keep light, even pressure on the triangle so it does not shift while you draw.

Straight Edge vs. Inking Edge Triangles

In addition to choosing the correct angles, you will need to decide between a straight-edge triangle and an inking-edge triangle.

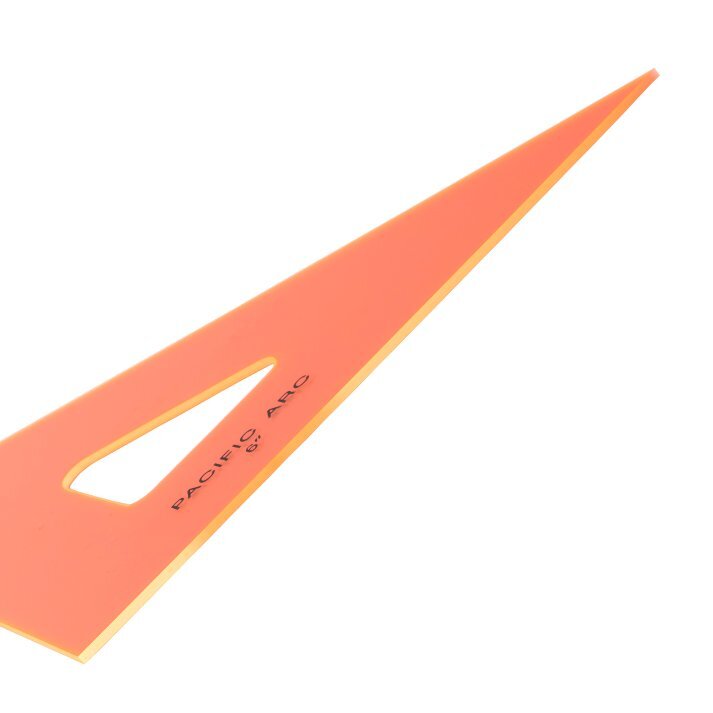

Straight-Edge Triangles

A straight-edge triangle sits directly against the drawing surface. It is a practical choice for pencil drafting and everyday classroom work.

Straight-edge triangles are typically:

• Simple to use
• Affordable
• Well suited to pencil and lead
• Available in student and professional grades

The Alvin Scholastic Triangles with Straight Edges are among our best-selling options. They are a dependable, affordable choice for students who primarily work in pencil.

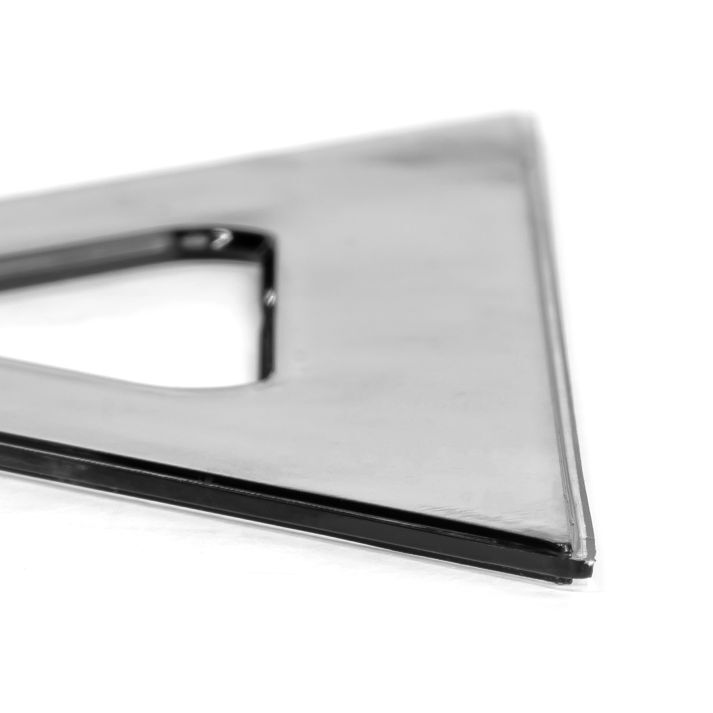

Inking-Edge Triangles

An inking edge creates a small amount of separation between the drawing edge and the paper. This helps prevent wet ink from being pulled underneath the triangle, which can cause bleeding and smearing.

Inking-edge triangles are useful for:

• Technical pen work
• Inked drawings
• Finished presentation drawings
• Vellum and drafting film
• Professionals and students who work in both pencil and ink

The Alvin Smoke Triangles with Inking Edges are another DEW bestseller. Their transparent smoke tint allows the drawing to remain visible underneath the tool while helping reduce glare from bright overhead lights.

You can use an inking-edge triangle for pencil work, but a student who works only in pencil may not need that feature.

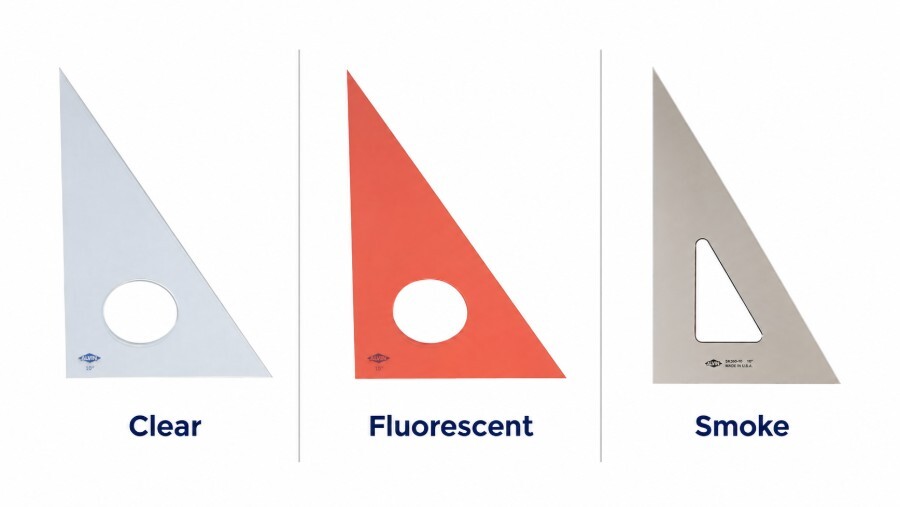

Clear, Smoke, or Fluorescent Triangles

The color or tint does not change the angles a triangle can create, but it can affect visibility and comfort.

Clear Triangles

Clear triangles make it easy to see your drawing, reference points, and existing lines underneath the tool. They are a popular choice for students because alignment is straightforward.

Smoke Triangles

Smoke triangles are transparent but have a gray or brown tint that helps reduce glare. They are especially helpful under strong classroom, studio, or office lighting.

Fluorescent Triangles

Fluorescent triangles direct light toward the working edge, making the edge easy to see against the drawing. Their bright color also makes them easier to locate on a crowded drafting table or work surface.

We have also noticed that trade schools and trade programs frequently choose fluorescent triangles for their drafting kits. HVAC, plumbing, pipefitting, and other technical programs often select them over clear or smoke triangles.

Their highly visible edges and bright color may be part of the appeal, but it ultimately appears to come down to what instructors and students prefer working with.

Scholastic vs. Professional Drafting Triangles

Scholastic triangles are designed to provide the angles and straight edges students need at an affordable price. They are a sensible choice for beginning drafting courses, geometry classes, and occasional use.

Professional triangles are generally made from thicker or more rigid materials. They may provide greater stability for long lines and frequent use. Professional models are available in clear acrylic, fluorescent acrylic, smoke-tinted materials, and aluminum.

A beginner does not necessarily need the most expensive triangle. A good scholastic set is usually enough for learning basic drafting techniques. Students who expect to continue into architecture, engineering, interior design, or professional drafting may choose to invest in heavier professional triangles.

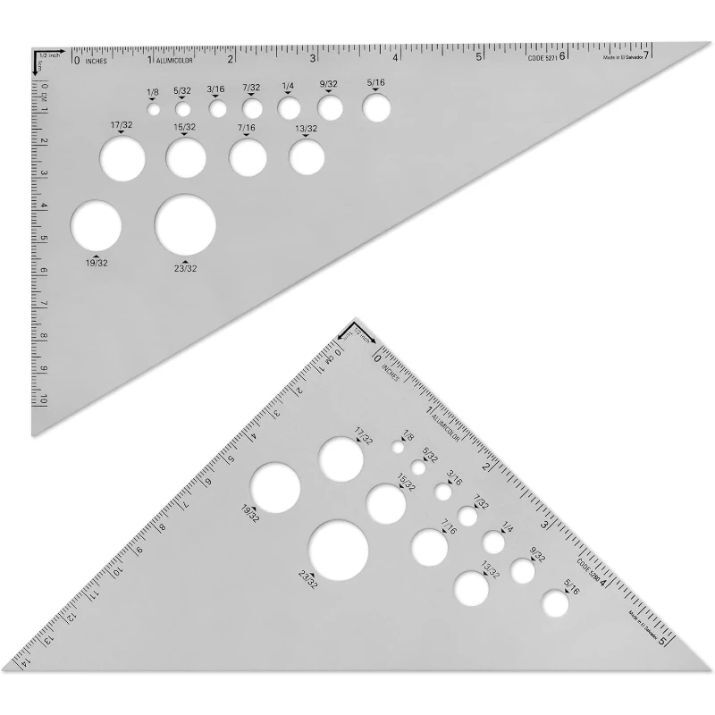

What About Aluminum Triangles?

Aluminum triangles are durable, rigid, and resistant to the cracking that can occur with some plastic tools. Some also include inch or metric calibrations.

They are useful for:

• Frequent classroom or professional use
• Shop and field environments
• Users who prefer a thin, rigid drawing edge
• Projects where durability is more important than transparency
• When you need measurements on the triangle
• Our aluminum triangles come with circle cut outs to replace a circle template

The main tradeoff is that aluminum is opaque. You cannot see drawing lines underneath it as you can with a clear or smoke-tinted triangle.

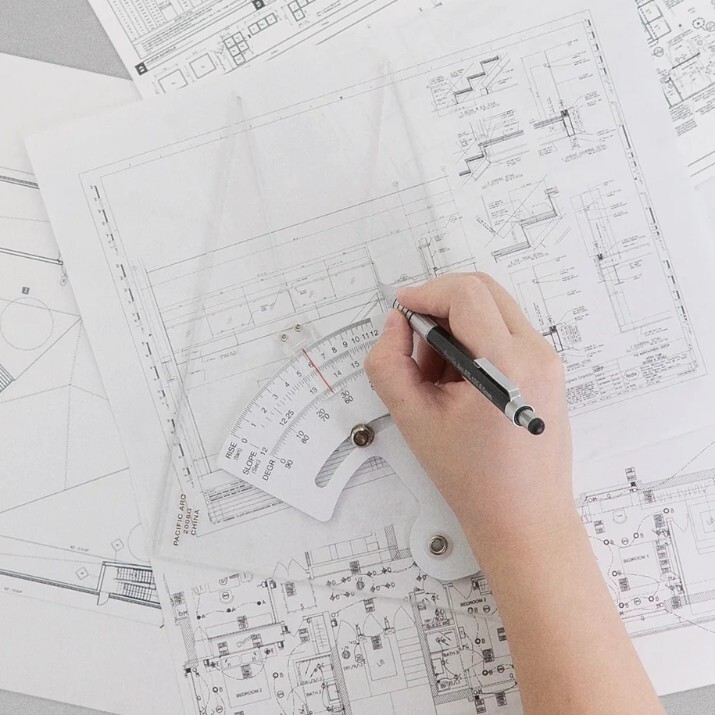

What Is an Adjustable Triangle?

An adjustable triangle has a movable section that can be locked at different angles. This allows it to create angles beyond the standard 30, 45, 60, and 90 degrees.

Adjustable triangles are useful for:

• Drawing roof slopes
• Creating unusual or repeated angles
• Mechanical and engineering drawings
• Calculating rise and slope
• Professional drafting applications

For a beginning student, an adjustable triangle normally supplements rather than replaces the standard 30°/60° and 45° triangles. Fixed triangles are faster and easier to use for the most common angles.

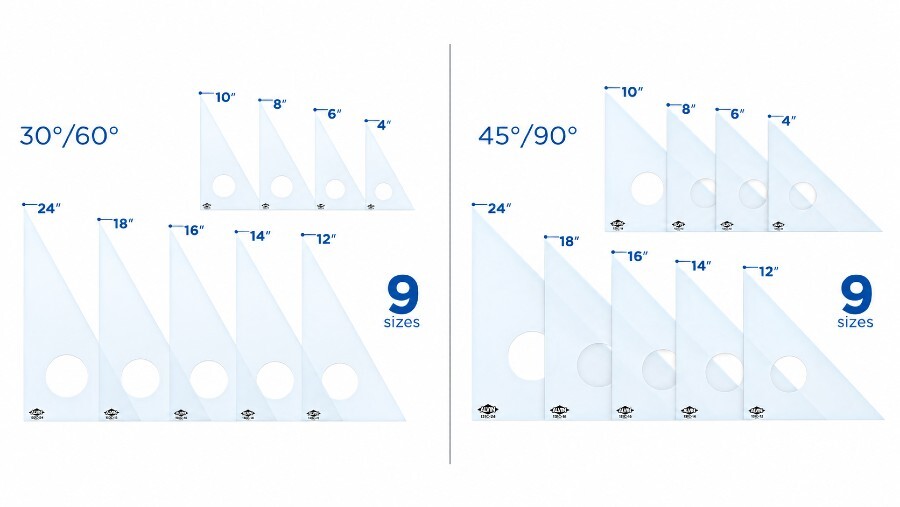

What Size Drafting Triangles Should You Buy?

Drafting triangles are available in several sizes. Common student sizes include 8, 10, and 12 inches.

• Smaller triangles work well for compact drawings, detail work, and portable drafting kits.
• 10-inch triangles are a practical size for many student assignments.
• 12-inch triangles provide a longer drawing edge for larger sheets and longer lines.
• Larger professional triangles are useful for large-format drawings and drafting tables.

Your two triangles do not have to be the same size. Some school supply lists call for a larger 30°/60° triangle and a slightly smaller 45° triangle.

Always follow your instructor’s supply list when a specific size is required.

Common Drafting Triangle Mistakes

Using the Triangle Without a Horizontal Guide

A drafting triangle should normally be used against a T-square or parallel bar. Positioning it by eye can introduce small errors that become more noticeable across a drawing.

Holding the Triangle Too Lightly

If the triangle moves while you draw, the line may curve or become misaligned. Use enough pressure to hold the tool securely without damaging the paper.

Drawing with a Damaged Edge

Nicks, cuts, and dried ink along the edge can affect line quality. Inspect and clean the triangle periodically.

Using a Regular Triangle as a Cutting Guide

Do not run a hobby knife along a drafting triangle unless the product is specifically designed and labeled for cutting. A blade can damage the edge, ruin its accuracy, and create a safety hazard.

Forgetting to Account for the Inking Edge

When working with ink, make sure you are using the proper raised or beveled drawing edge. The purpose of the inking edge is to keep wet ink from being pulled beneath the tool.

How to Care for Drafting Triangles

• Store them flat or in a protective case.
• Keep them away from excessive heat.
• Clean them with a soft cloth and a cleaner that is safe for their material.
• Remove graphite and ink buildup from the edges.
• Do not use them as cutting guides unless they are specifically designed for cutting.
• Avoid dropping acrylic triangles on hard floors.
• Check the edges periodically for chips or damage.

Frequently Asked Questions

Is a 45-degree triangle the same as a 45°/90° triangle?

Yes. A standard 45-degree drafting triangle contains two 45-degree angles and one 90-degree angle. It may also be described as a 45°/45°/90° triangle.

Is a 30°/60° triangle also a right triangle?

Yes. Its third angle is 90 degrees, so it is a right triangle.

Do drafting students really need both triangles?

Most beginning drafting students should have both. The pair provides the standard 30-, 45-, 60-, and 90-degree angles and can be combined to create additional angles.

Do both triangles need to be the same size?

No. They can be different sizes. Follow the course supply list if your instructor specifies particular sizes.

Can a protractor replace drafting triangles?

A protractor can measure nearly any angle, but it is not as efficient for repeatedly drawing standard angles and parallel lines. Triangles are faster for everyday manual drafting.

Can I use an inking-edge triangle with a pencil?

Yes. An inking-edge triangle can generally be used for pencil work as well as ink. However, students working exclusively in pencil may prefer a basic straight-edge triangle.

Are clear or smoke triangles better?

Both allow you to see the drawing underneath the tool. Clear triangles provide maximum transparency, while smoke triangles help reduce glare. The better choice depends on your lighting and personal preference.

Why Are Fluorescent Triangles Popular in Trade Programs?

We frequently see trade schools and technical programs select fluorescent triangles for their student kits. Their bright color and highly visible working edge may be helpful in a busy classroom or shop environment, but the choice often comes down to instructor and student preference.

Choosing the Right Drafting Triangles

For most students, a basic straight-edge 30°/60° and 45° triangle will cover the majority of classroom assignments. The Alvin Scholastic Straight-Edge Triangles are an excellent starting point for pencil drafting.

Students and professionals who work with technical pens or prefer reduced glare may want the Alvin Smoke Inking-Edge Triangles.

Fluorescent triangles are another strong option, particularly for trade and technical programs where they have consistently been a popular choice.

Whichever style you choose, having both standard triangle shapes gives you far more flexibility than either triangle can provide alone.
