Description

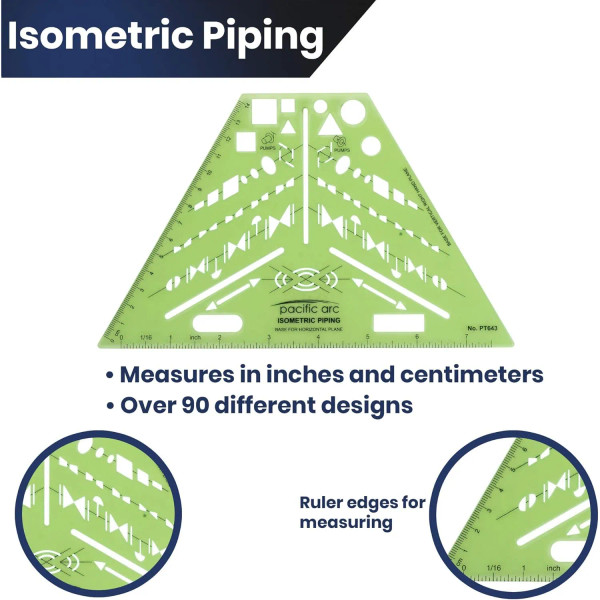

This piping and instrumentation template is an essential tool for students, architects, and interior designers. Featuring symbols for valves, flanges, elbows, reducers, caps, and pumps, it allows for precise and professional designs. Its compact size makes it easy to carry for on-the-go projects.
Features:
- Comprehensive Symbols – Includes valves, flanges, elbows, reducers, caps, and pumps.
- Integrated Rulers – Features both a 7-inch ruler and a 14-centimeter ruler for accurate measurements.
- Photographic Reproduction Size – Designed in correct relative size for accurate reproduction.
- High-Quality Material – Made from translucent green plastic for clear, precise drawings.
- Multi-Surface Compatibility – Works on paper, vellum, fabric, canvas, wood, and mylar.
