Shop ellipse templates for drafting, isometric drawing, engineering, architecture, technical illustration, and design work. These templates help create clean, accurate ellipses in common drafting angles and sizes without relying on freehand drawing.
Filter By
Products List
- Product
- Qty in Cart
- Quantity
- Price
- Subtotal
-
60-Degree Ellipse Template
RapiDesign$10.65Rapidesign 60-Degree Ellipse Template contains 15 degree ellipses with major axes measuring from 1/4 to 2 inches. This professional grade, precision-engineered template is made of durable,... -
Big Ellipse Templates
Timely Templates$28.50Contains 60 ellipses in four projections of 15° 30° 45° and 60°. Major axes of 1 ¼" to 6½". Size: 4½" x 8" x .020". -
Big Isometric Template
Timely Templates$4.701 to 7½ axes. All are 35-16' projection. Dimensions are for isometric projections. -
Ellipse Master Combo Template
Pickett$17.20Contains four projections of 15 30 45 and 60. Size range from 1/8" to 1¾". Size: 8-11/16" x 12" x .030". -
Ellipse Set of 5
Timely Templates$30.10Contains 13 projections from 10° through 90°. Major axes of 7/16" to 1¾" 195 ellipses. Size: 6 ¼" x 10" x .020". -
Ellipse Template
RapiDesign$16.85Contains 60 ellipses in four projections of 25 35 45 and 60. Size range from ¼" to 13/8". Size: 5" x 10 ¼" x .030". -
Isometric Ellipse Master Template
Pickett$12.55Contains 60 ellipses in four projections of 25 35 45 and 60. Size range from ¼" to 1½". Size: 5" x 11" x .030". -
Isometric Ellipse Template
RapiDesign$23.50Contains 12 isometric ellipses with axes from 1½" to 2" in increments of 1/8" and from 2" to 7" increments of ¼".Size: 6-1/16" x 9-7/8" x .030". -
Isometric Ellipses Template
Timely Templates$7.70Contains 35 ellipses from 1/16" to 2½". Size: 6 ¼" x 9-7/8" x .020". -
Small Ellipse Template
Timely Templates$6.40Contains 252 ellipses in projections of 10 to 70. Major axes of 1/16" to ½". Size: 6 ¼" x 9¾" x .020". -
20° Ellipse Template PK
Pickett$9.75Pickett ellipse templates are suitable for many drafting and drawing needs.Features:29 Sizes: 1/4" to 2"Built-in risers and smooth apertures to reduce smudged lines for engineering, drafting and... -
25° Ellipse Template PK
Pickett$10.05Pickett ellipse templates are suitable for many drafting and drawing needs.Features:28 Sizes: 7/32" to 2"Built-in risers and smooth apertures to reduce smudged lines for engineering, drafting and... -
25° Ellipse Template PK
Pickett$10.05Pickett ellipse templates are suitable for many drafting and drawing needs.Features:27 Sizes: 1/8" to 2"Built-in risers and smooth apertures to reduce smudged lines for engineering, drafting and... -
30° Ellipse Template PK
Pickett$9.75Pickett ellipse templates are suitable for many drafting and drawing needs.Features:27 Sizes: 3/16" to 2"Built-in risers and smooth apertures to reduce smudged lines for engineering, drafting and... -

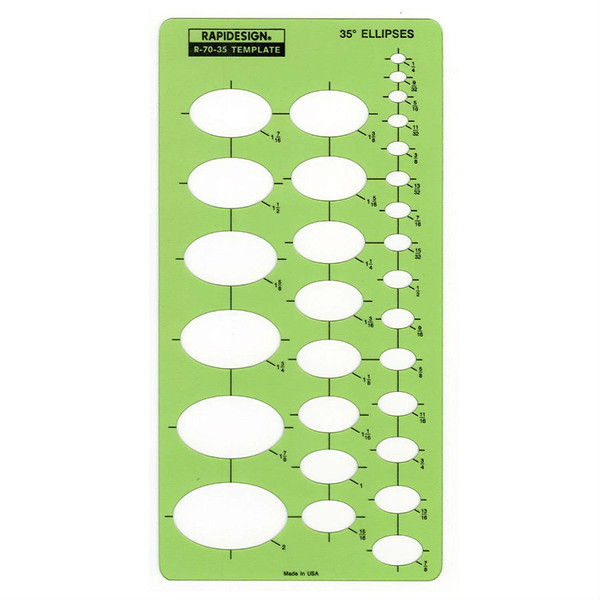

35-Degree Ellipse Template
RapiDesign$10.65Rapidesign 35-Degree Ellipse Template contains 15 degree ellipses with major axes measuring from 1/4 to 2 inches. This professional grade, precision-engineered template is made of durable,... -
35° Ellipse Template PK
Pickett$9.75Pickett ellipse templates are suitable for many drafting and drawing needs.Features:26 Sizes: 5/32" to 2"Built-in risers and smooth apertures to reduce smudged lines for engineering, drafting and... -
50-Degree Ellipse Template
RapiDesign$10.65Rapidesign 50-Degree Ellipse Template contains 15 degree ellipses with major axes measuring from 1/4 to 2 inches. This professional grade, precision-engineered template is made of durable,... -
50° Ellipse Template PK
Pickett$9.75Pickett ellipse templates are suitable for many drafting and drawing needs.Features:27 Sizes: 1/8" to 2"Built-in risers and smooth apertures to reduce smudged lines for engineering, drafting and... -
55-Degree Ellipse Template
RapiDesign$10.65Rapidesign 55-Degree Ellipse Template contains 15 degree ellipses with major axes measuring from 1/4 to 2 inches. This professional grade, precision-engineered template is made of durable,... -
60° Ellipse Template PK
Pickett$10.05Pickett ellipse templates are suitable for many drafting and drawing needs.Features:27 Sizes: 1/8" to 2"Built-in risers and smooth apertures to reduce smudged lines for engineering, drafting and...
Types of Ellipse Templates
Ellipse templates are precision drafting tools used to draw accurate elliptical shapes for technical drawings, isometric views, mechanical details, architectural drawings, and design layouts. These templates are especially useful when a drawing requires consistent ellipse angles, clean curves, and repeatable sizing.
- Single-Angle Ellipse Templates: Draw ellipses in specific drafting angles such as 10°, 15°, 20°, 25°, 30°, 35°, 40°, 45°, 50°, 55°, 60°, 65°, and 70°
- Multi-Angle Ellipse Templates: Combine several common ellipse projections on one template for flexible drafting and design work
- Small Ellipse Templates: Create smaller ellipses for detailed technical drawings, compact layouts, symbols, and precision design work
- Large Ellipse Templates: Draw larger ellipses for layouts, presentation drawings, mechanical details, architectural drawings, and oversized design elements
- Ellipse Template Sets: Provide multiple ellipse templates or size ranges for broader drafting coverage across different angles and applications
- Isometric Ellipse Templates: Create ellipses used in isometric drawing, including cylinders, holes, pipes, wheels, and rounded objects shown in three-dimensional views
- Master Ellipse Templates: Offer multiple ellipse angles and sizes on one template for professional drafting, engineering, and technical illustration
Choosing the Right Ellipse Template
When selecting an ellipse template, consider the ellipse angle, size range, and type of drawing being created. Single-angle templates are useful when a specific projection is required, while multi-angle and master ellipse templates are better for general drafting work where several ellipse angles may be needed.
Isometric ellipse templates are especially important for technical and mechanical drawings because circular objects appear as ellipses when shown in isometric view. For complete drafting coverage, many students and professionals keep both standard ellipse templates and isometric ellipse templates available.
