Ellipse templates are designed for drawing accurate elliptical shapes commonly required in mechanical, architectural, and technical drafting. They help maintain consistent proportions and clean geometry in detailed layouts.
Filter By
Products List
- Product
- Qty in Cart
- Quantity
- Price
- Subtotal
-
Metric Ellipse Master Template
RapiDesign$15.10Contains: 20, 30, 40, and 50 projections. Sixty ellipses ranging in size from ¼" to 1-3/8". Size: 5" x 10 ¼" x .030". -
Ellipse Master Combo Template-1764074090
RapiDesign$20.15Contains 79 ellipses with projections of 15°, 30°, 45° and 60° 15° projections from 3/16" to 1-5/8", 30° From 1/8" to 1½", 45° from 1/8" to 1 �", and 60° from 1/8" to 1-5/8". Size: 11" X 8½". Thickness: ... -
Isometric Ellipses Template
Pickett$12.55Contains 27 ellipses from 1/8" to 2". Size: 57/8" x 10" x .030". -

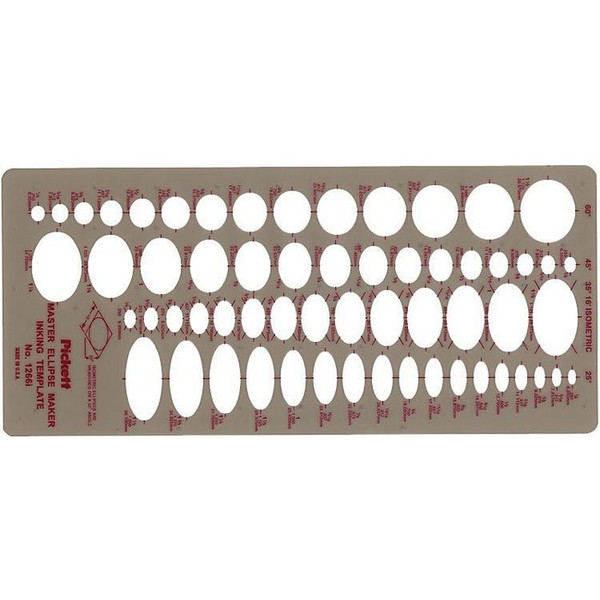

Isometric Ellipse Master Template
Pickett$12.55Contains 60 ellipses in four projections of 25 35 45 and 60. Size range from ¼" to 1½". Size: 5" x 11" x .030". -

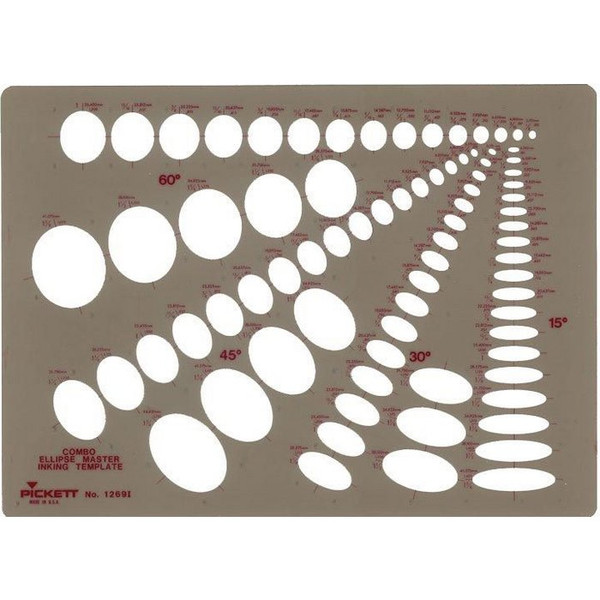

Ellipse Master Combo Template
Pickett$17.20Contains four projections of 15 30 45 and 60. Size range from 1/8" to 1¾". Size: 8-11/16" x 12" x .030". -
Ellipse Master Template
Pickett$12.55Contains five projections 20° through 60° in increments of 10°. Size range ¼" to 1½". Size: 5" x 11" x 0.30". -

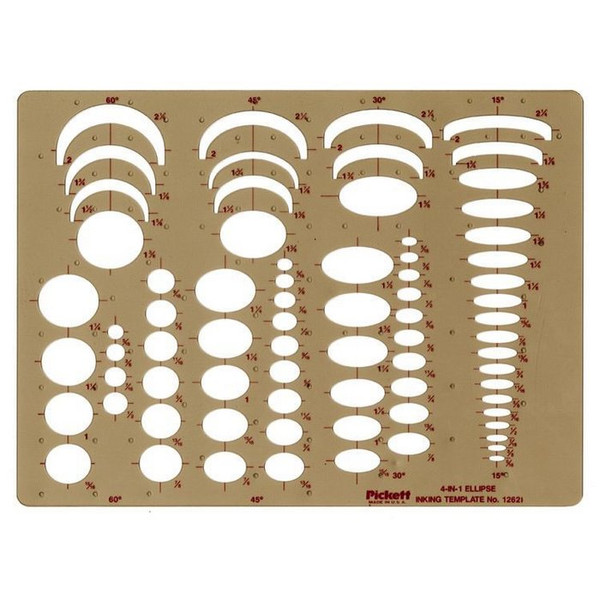

4 in 1 Ellipse Template
Pickett$19.10Contains 74 ellipses in projections of 15 30 45 and 60. Major axes of-5/16" to 2 ¼". Size: 8¾" x 12" x .030".
