Electronic Control Template
RapiDesign$21.10Contains standard symbols used in machinery and automation circuits. Size: 3 ¼" x 8" x .030". -

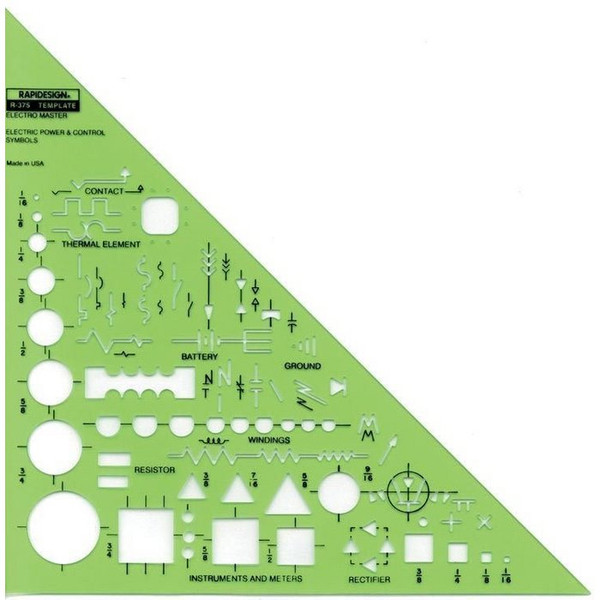

Electromaster Template
RapiDesign$27.00Contains electrical and other symbols used in the utility and power and light industries. Size: 8" x 8" x 11½" x .040". -

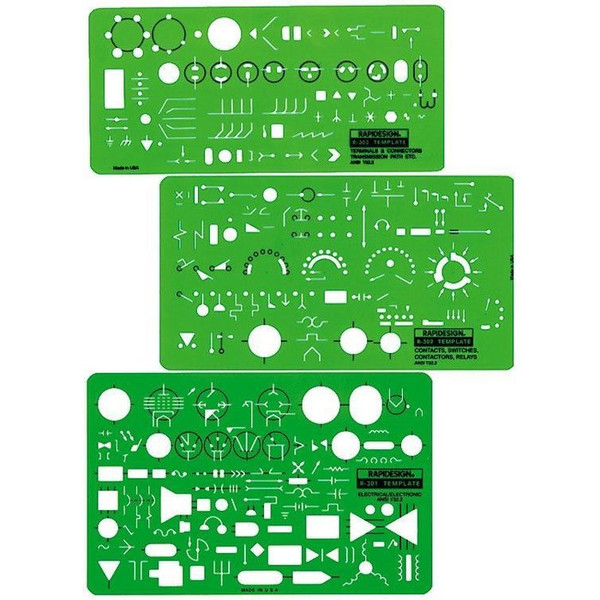

Electrical Templates Set
RapiDesign$53.25Contains a comprehensive set of three templates conforming to ANSI Y32.2. Size: 7¾" x 5" x .030"; 8" x 4-3/8" x .030"; 8" x 3¾" x .030". -

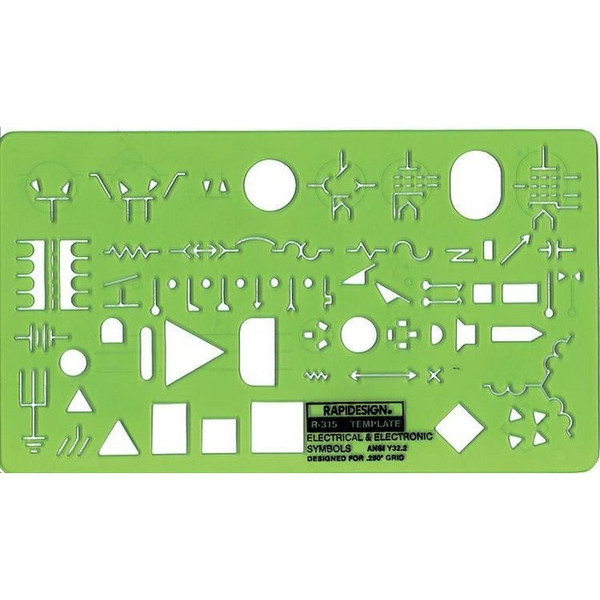

Electrical Template
RapiDesign$16.55Contains transformers resistors capacitors etc. Designed for .250" grid. Size: 5" x 8 ¼" x .060". -
Chemical Ring Template
RapiDesign$20.15Contains pentagons hexagons heptagons and octagons. Size: 5" x 6-7/8" x .040". -
Large Circle Template
RapiDesign$13.30Contains 45 circles from 1/16" to 2 ¼". Size: 7 ¼" x 8 ¼" x .030". -
Extra Large Circles
RapiDesign$12.25Contains thirteen extra-large circles with decimal and metric equivalent sizes. Diameter sizes from 1-1/4" to 3-1/2". Corner radii are 3/4", 7/8" and 1-1/8". Similar to: Timely T-404 Circle... -
Civil Engineer Radius Guide
RapiDesign$22.15A tool for drawing 26 circles with an additional 12 radii for center locating. Three scales: 1" = 20� 50� 100�. Size: 7½" x 9½" x .060". -
Circle Template I
RapiDesign$10.05This circle template contains 39 circles from 1/16" to 1-3/8". Thickness: .030". -

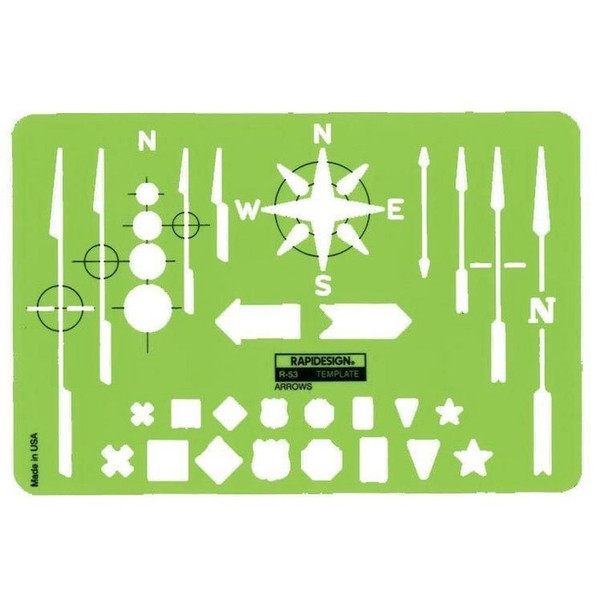

Arrow Template
RapiDesign$13.60Contains arrows north indicators road signs and two sizes of traffic markers. Size: 4" x 6" x .030". -

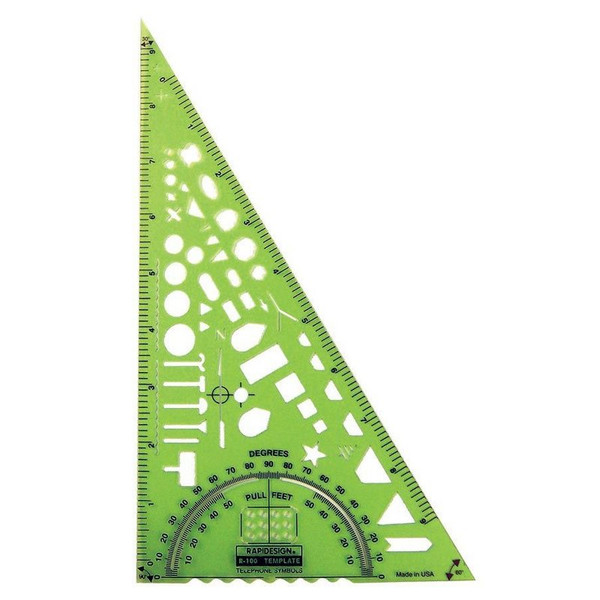

Telephone Symbols Template
RapiDesign$12.45Contains most commonly used symbology for telephone system layout. Size: 10" x 5¾" x .030". -

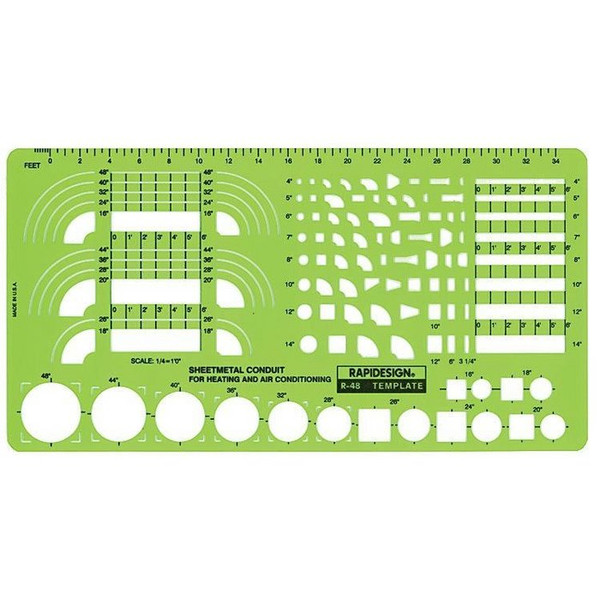

1/4" Scale Sheet Metal Conduit Template
RapiDesign$22.60Contains cross-sections for heating and air conditioning layout. Scale: ¼" = 1'. Size: 5" x 9¾" x .030". -
Multiple Scale Plumbing Fixture Plan Template
RapiDesign$13.25Contains standard lavatory symbols for residential, commercial and institutional installations in ¼", 1/8" and 1/16" scales. Includes 4 ¼", 6", 8" and 9" tile spacing in ¼" scale... -
Multiple Scale Plumbing Fixture Elevation Template
RapiDesign$13.25Contains standard lavatory symbols in ½"-3/8" ¼" and 1/8" scale. Size: 9¾" x 57/8". -
1/4" and 1/8" Scale Lighting Fixtures Template
RapiDesign$12.50Contains basic lighting fixtures used in the construction industry. Scales: 1/8" and ¼" = 1'. Size: 5 ¼" x 7 ¼" x .030". -
1/8" Scale House Plan Fixtures Template
RapiDesign$15.45For architects, builders and contractors. Contains the symbols most commonly used in the profession. Includes roof pitch gauge and 16" spacing in 4" modules. Scale: ¼" = 1'. Same symbols as... -
1/4" Scale House Plan Fixtures Template-1764072812
RapiDesign$14.70Scale: ¼" = 1'. For architects, builders and contractors. Contains the symbols most commonly used in the profession. Includes roof pitch gauge and 16" spacing in 4" modules. Size: 9½" X... -

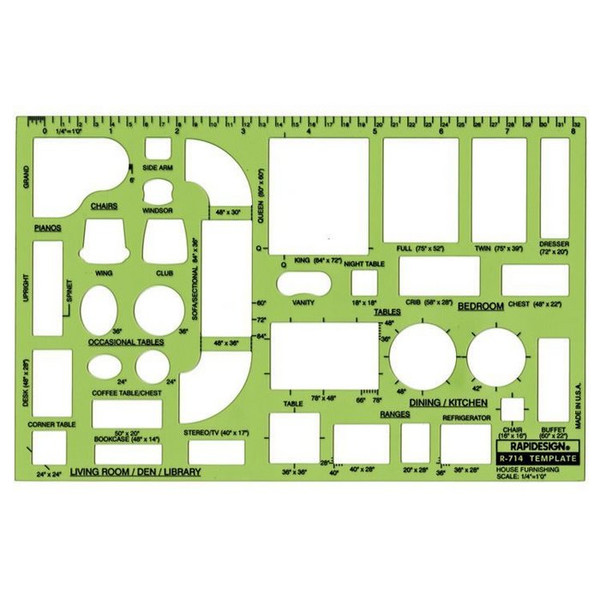

1/4" Scale House Furnishing Template
RapiDesign$17.05Scale: ¼" = 1'. To plan furniture and appliance arrangement before or after house is completed or when furniture re-arrangement is contemplated. Size: 8-5/8" X 5½". Thickness: .030". -
Heating and Air Conditioning Template
RapiDesign$17.00Contains commonly used symbols for heat and air conditioning applications. Size: 5" x 7" x .030". -
1/8" Scale CBA Architectural
RapiDesign$17.00Contains circles door swings kitchen and lavatory fixtures and roof pitch index. Scale: 1/8" = 1'. Size: 3¾" x 6 ¼" x .030".
