Electroneer Template
RapiDesign$14.30All diagrammatic elements of electronic and cathode ray tubes are provided for, plus tube bases of 4, 7, and 8 prong type, in addition to all symbols in the field of electronics. Cut-outs beveled for... -
1/4" Scale Kitchen Detailer Template
RapiDesign$17.65A combination of kitchen cabinetry and appliances to aid in larger scale kitchen designs arranged on a 45° triangle with ¼" scale. -
Circle Radius Template
RapiDesign$16.30Contains 62 circles from 3/64" to 7½". Size: 7½" x 10-3/8" x .030". -
Traffic Symbols Template I
RapiDesign$14.70Contains various symbols with emphasis on general traffic. Size: 3-7/8" x 8" x .030". -
Traffic Signing Template
RapiDesign$18.30Contains standard traffic engineering symbols in 24" 36" and 48" scale. Size: 6" x 10-3/8" x .030". -

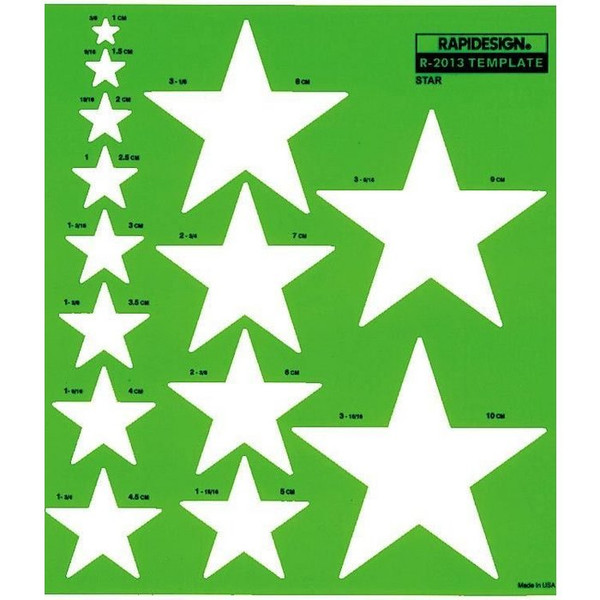

Metric Star Template
RapiDesign$19.80Contains 14 five-pointed stars from 1cm to 10cm. Size: 21.5cm x 23.5cm x .8mm. -
Metric Circle Template-1764077074
RapiDesign$13.95Contains 44 circles from 2mm to 50mm. Size: 18.5cm x 21cm x .8mm. -
Metric Circle Template I
RapiDesign$9.75Contains 44 circles from 2mm to 50mm. Size: 10cm x 18cm x .8mm. -
Metric Isometric Ellipse Template
RapiDesign$17.65Contains 38 ellipses from 3mm to 40mm in 1mm increments. Size: 18.3cm x 32.4cm x .8mm. -
Metric Extra Large Circles Template
RapiDesign$12.50Contains 13 circles from 25mm to 85mm. Size: 22.2cm x 29.2cm x .8mm. -
-

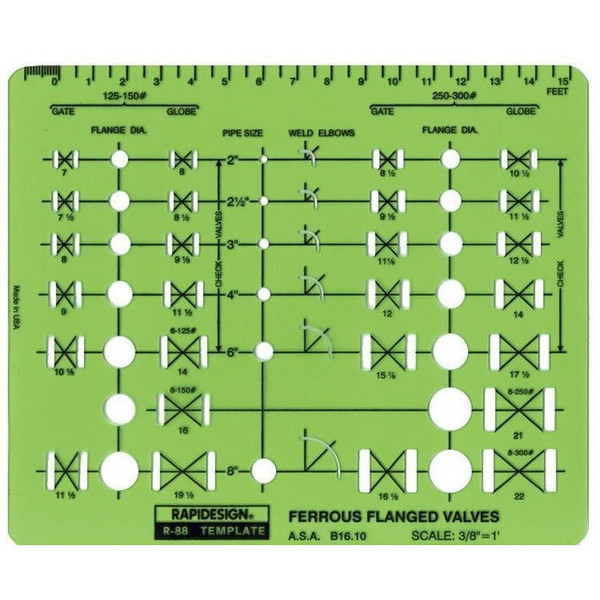

3/8" Scale Valves Template
RapiDesign$15.30Contains check valves elbows flange diameters and gates. Scale:-3/8" = 1'. Size: 5-3/8" x 6½" x .030". -
Process Template
RapiDesign$19.80For flow sheet diagrams in the chemical foods petroleum plastics and allied industries. Size: 5" x 8-3/16" x .030". -

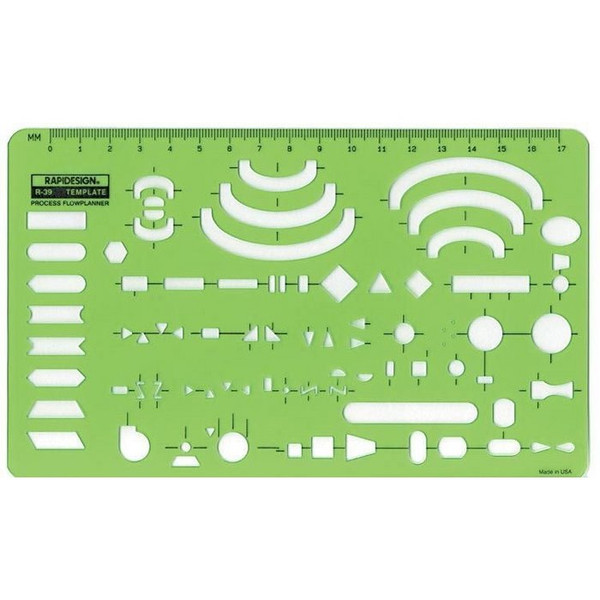

Process Flow planner Template
RapiDesign$16.50Contains commonly used symbols such as data flags pumps jets flow nozzles vessel heads etc. Size: 7-11/16" x 4-5/8" x .030". -
Pipe Fitting Template
RapiDesign$18.25Contains symbols for pipe end bell flange and fittings in seven sizes. Size: 5" x 8" x .030". -
Isometric Piping Template
RapiDesign$17.05Contains valves flanges elbows reducers caps and pumps. Size: 5-3/16" x 8½" x .030" . -
Instrument Symbols Template
RapiDesign$16.50Contains commonly used instrument symbols. Size: 5" x 8" x .030". -

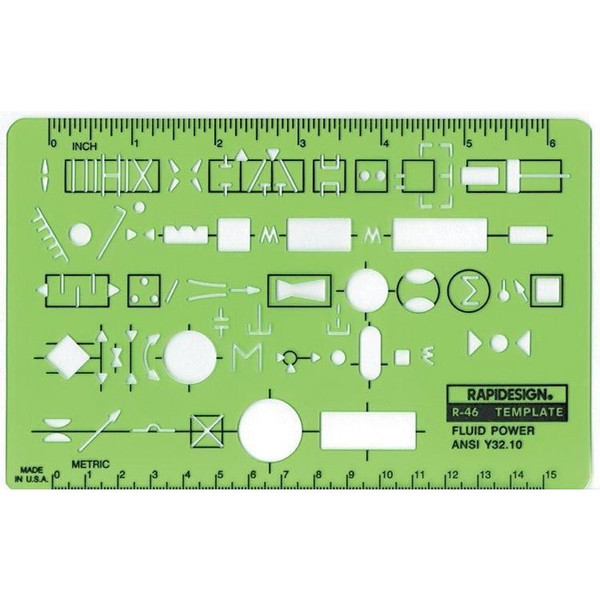

Fluid Power Template
RapiDesign$18.90Contains symbols for fluid power diagrams derived from ANSI Y32.10. Size: 4½" x 7" x .030". -

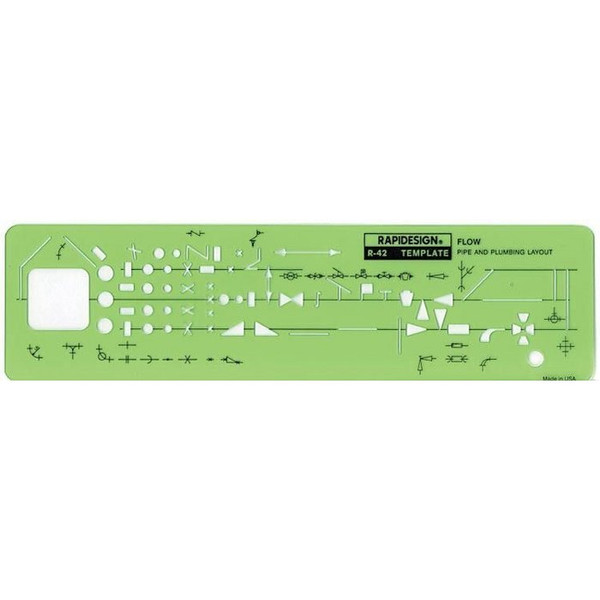

Flow Chart Template-1764076361
RapiDesign$13.60Contains standard symbols used for pipe and plumbing layout. Size: 2¾" x 10 1/8" x .030". -

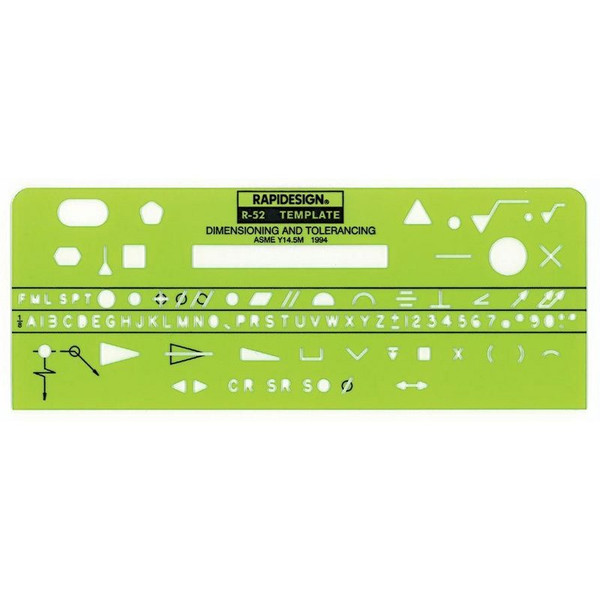

Dimension and Tolerance Template
RapiDesign$15.10Contains symbols proportioned to 1/8" character height. Size: 2¾" x 7" x .030".
